Description
Features
● IP65 water-proof, dust-proof
● Special design for multiple link
● ETL DLC TUV SAA approved
● Easy replacement and installation with brackets
Technical Specifications
● Input Voltage: AC100-277V/AC100-240V 50/60HZ
● Total harmonic distortion: THD<19%
● Power Factor: PF>0.95
● Efficiency: 110-135LM/W
● Color Index: Ra>82
● UGR: <19
- IP Rating: IP65
● Life Span: 50,000 hours
● Switch Times>100,000 times
● Operation Temperature: -30°C ~ +50°C
Applications
● Replaces fluorescent NCF fittings
● Warehouses, factories & food storage
● Car parks & sports facilities,Kitchens.
● Mining area,Steel plant,Tunnel, Basement etc.
Options
● Function: Normal / Triac Dimmable

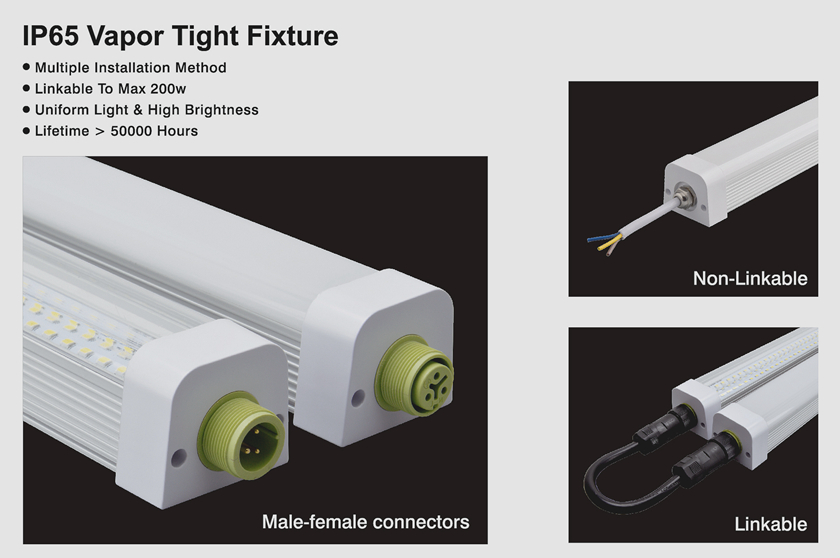

● Connection options: Linkable / Non-linkable / Power on the back
● Installation types: Standard Clip, Suspending
| Item No. | Length | Power | LED type | LED QTY | Power Factor | Luminous flux(LM) | CRI | Package Size |
| LY-T5SL600-15WM | 2ft/600mm | 15W | SMD2835 | 108pcs | PF>0.95 | 1650-2025lm | >82 | 710*260*180mm 20pcs/ctn |
| LY-T5SL900-25WM | 3ft/900mm | 25W | SMD2835 | 168pcs | PF>0.95 | 2750-3375lm | >82 | 1015*260*180mm 20pcs/ctn |
| LY-T5SL1200-30WM | 4ft/1200mm | 30W | SMD2835 | 216pcs | PF>0.95 | 3300-4050lm | >82 | 1310*260*180mm 20pcs/ctn |
| LY-T5SL1200-40WM | 4ft/1200mm | 40W | SMD2835 | 288pcs | PF>0.95 | 4400-5940lm | >82 | 1310*260*180mm 20pcs/ctn |
| LY-T5SL1500-40WM | 5ft/1500mm | 40W | SMD2835 | 288pcs | PF>0.95 | 4400-5940lm | >82 | 1645*210*180mm 16pcs/ctn |
| LY-T5SL1800-44WM | 6ft/1800mm | 44W | SMD2835 | 336ocs | PF>0.95 | 4840-5940lm | >82 | 1945*210*180mm 16pcs/ctn |
| LY-T5SL-2400-60WM | 8ft/2400mm | 60W | SMD2835 | 432pcs | PF>0.95 | 6600-8100lm | >82 | 2445*160*140mm 9pcs/ctn |

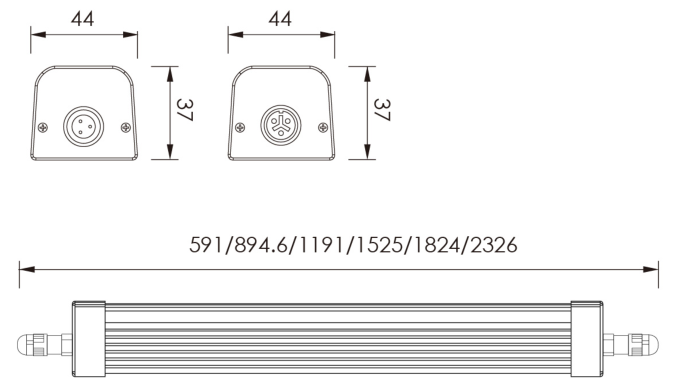

Product line drawing

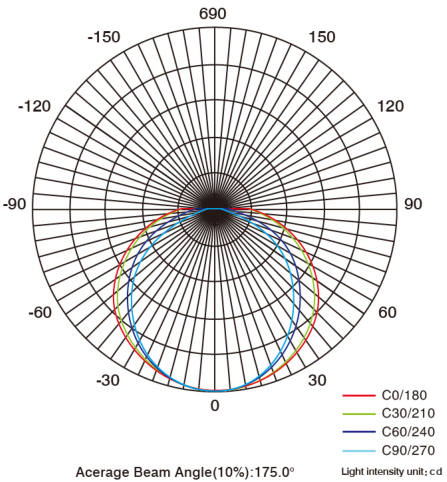

Light distribution curve
Standard Accessories
Length for power cord or connection cable can be customized.
