Description

Features
● Patent Male-female linkable design
● Seamless & No Dark in-line connection
● UL ETL DLC TUV SAA approved
● 0.8mm aluminum housing for excellent heat dissipation
● Heat protection system with excellent internal driver
● Easy replacement and installation with brackets
Technical Specifications
● Input Voltage: Isolated Driver
AC100-277V 50/60Hz / AC100-240V 50/60Hz
● Total harmonic distortion: THD<19%
● Power Factor: PF>0.95
● Efficiency: 110-130LM/W
● Color Index: Ra>82
● IP Rating: IP40
● Switching Time: 100,000
● Lumen maintenance @6000h: >80%
● Operation Temperature: -20°C ~ +50°C
Applications
● Replaces T8/T12 fluorescent fittings
● Warehouses, factories & food storage
● Supermarket, shopping malls, Office
● Home, Hotel, Parking lot, garage etc

Item No.	Length	Power	LED type	LED QTY	Power Factor	Luminous flux(LM)	CRI	Package
LY-T5SL600-15W	2ft/600mm	15W	SMD2835	96pcs	PF>0.95	1650-1950lm	>82	710*260*180mm;20pcs/ctn
LY-T5SL900-25W	3ft/900mm	25W	SMD2835	144pcs	PF>0.95	2750-3250lm	>82	1045*260*220mm;20pcs/ctn
LY-T5SL1200-30W	4ft/1200mm	30W	SMD2835	192pcs	PF>0.95	3300-3900lm	>82	1310*260*180mm;20pcs/ctn
LY-T5SL1200-40w	4ft/1200mm	40w	SMD2835	192pcs	PF>0.95	4400-5200lm	>82	1310*260*180mm;20pcs/ctn
LY-T5SL1500-40W	5ft/1500mm	40W	SMD2835	240pcs	PF>0.95	4400-5200lm	>82	1645*210*180mm;16pcs/ctn
LY-T5SL1800-44W	6ft/1800mm	44W	SMD2835	288pcs	PF>0.95	4840-5720lm	>82	1945*210*180mm;16pcs/ctn
LY-T5SL2400-60W	8ft/2400mm	60W	SMD2835	384pcs	PF>0.95	6600-7800lm	>82	2460*175*160mm;9pcs/ctn



Options
-Fuctions: Normal / Triac Dimmable / ON-OFF Switch
-Connection Way: Lead in wire / M-F Connection / Power on back wiring
-Extention cable: Power cord with plug
-Installation Type : Standard Clip / Magnetic Clip / Suspending Kits

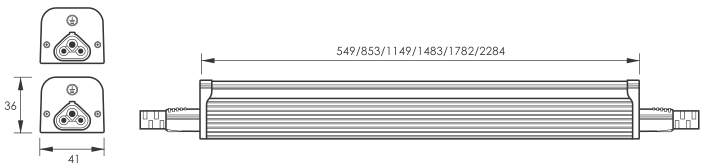

Product line drawing

Size(mm)
